PLATFORM COMPONENT

AAM51200W

High-performance wireless audio component designed for integration into OEM systems.

Part of the Audality wireless audio platform for long-range, high-fidelity, multi-channel audio.

Request Evaluation Kit   Contact Engineering

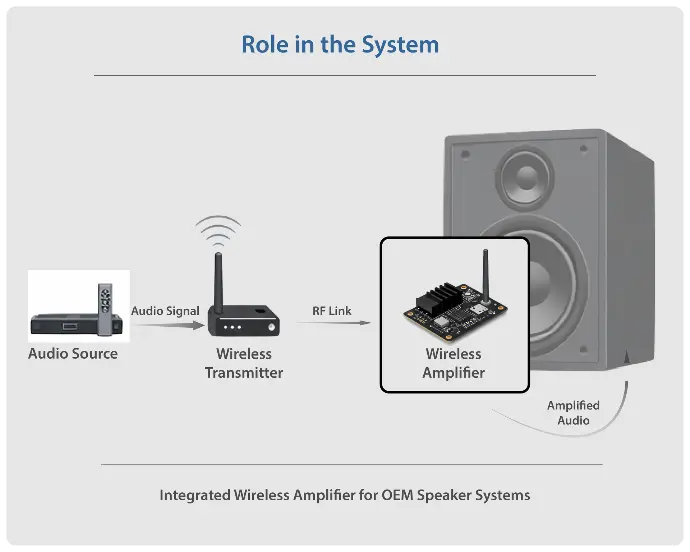

ROLE IN THE SYSTEM

Designed for Integration

The AAM51200W is designed as a core component within Audality-based audio systems, enabling reliable wireless audio distribution in applications ranging from audiophile speakers to outdoor PA speakers.

Key Capabilities

  • High-fidelity audio
  • Bi-amp, Tri-amp, Quad-amp ready
  • On-board configurable Audio DSP
  • Designed for scalable system deployment
  • Optimized for real-world RF environments
  • OEM-ready form factor for integration


Integration & Deployment

  • Compatible with Audality transmitter and control systems
  • Designed for integration into speakers and distributed systems
  • Supports both fixed and portable system architectures
  • Available with supporting components (power, battery, antennas, enclosures, solar charging)

Typical Use Cases

  • Outdoor distributed audio
  • Commercial multi-zone systems
  • Portable professional audio systems

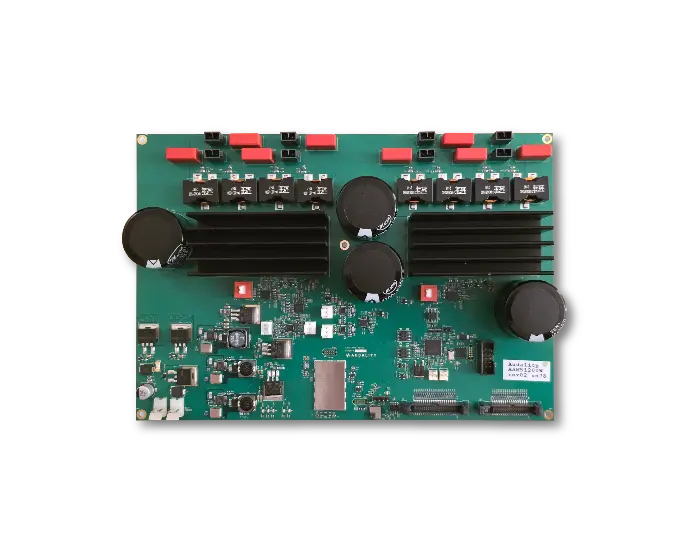

AAM51200W Wireless Audio Amplifier

The AAM51200W 1200W class D amplifier delivers high fidelity audio with high efficiency class-D technology. It also accepts digital audio from an audio source via an I2C buss for the ultimate in audio quality.

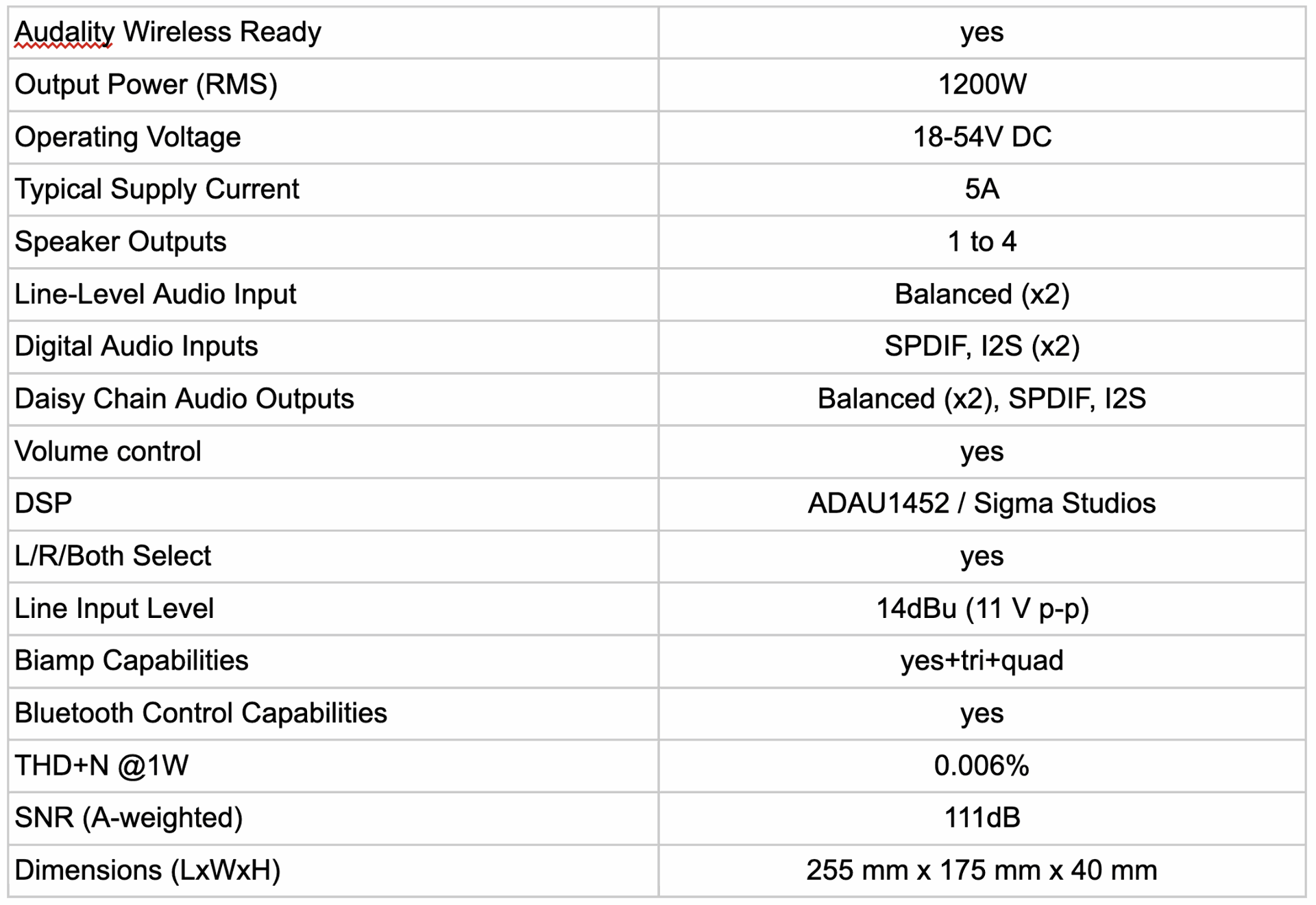

Specifications

Audality Wireless Ready yes
Output Power (RMS) 1200W, Biamp 600W/600W, Triamp 600W/300W/300W, Quad-amp 300W/300W/300W/300W
Operating Voltage 18-54V DC
Typical Supply Current 5A
Speaker Outputs 1 to 4
Line-Level Audio Input Balanced (x2)
Digital Audio Inputs SPDIF, 12S (x2)
Daisy Chain Audio Outputs Balanced (x2), SPDIF, I2S
Volume control yes
DSP ADAU1452 / Sigma Studios
L/R/Both Select yes
Line Input Level 14dBu Vp-p)
Biamp Capabilities yes+tri+quad
Bluetooth Control Capabilities yes
THD+N @1W 0.01%
SNR (A-weighted) 111dB
Dimensions (LxWxH) 255mm x 175 mm x 40 mm


 Part of the Audality Platform

  • Works with Audality transmitters and receivers
  • Supports multi-node system configurations
  • Designed for synchronized operation across multiple units


 Production and Availability

  • Manufactured in the United States
  • Available for evaluation and integration by OEM partners
  • Supports transition from prototype to production volumes

​

NEXT STEP

Build your next wireless audio system with Audality

Audality technology powers wireless audio systems in live sound, broadcast, commercial installations, and integrated speaker platforms. Whether you're evaluating modules for a new product or deploying a complete wireless audio system, our team can help you get started.

Request Evaluation Kit      Contact Engineering

​
