AWM4030D WiC Transmitter/receiver

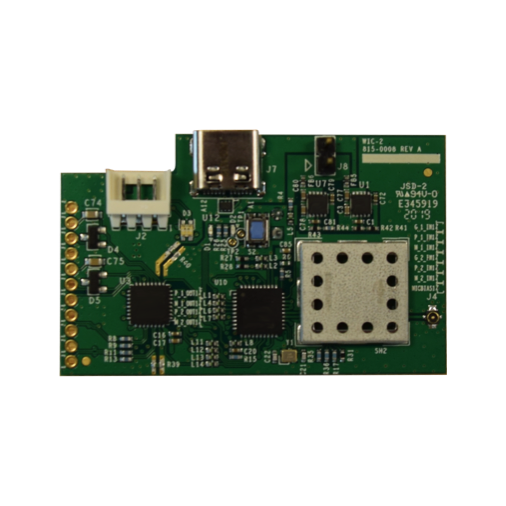

The AWM4030D is a WiC® compliant wireless audio transmitter/receiver that delivers extraordinary wireless audio quality for multi-room or multi-zone applications. The AWM4030D miniature circuit board is a USB device that transmits uncompressed HD audio to WiC compatible wireless speakers, or receives uncompressed HD audio from a WiC compatible wireless audio transmitter. The AWM4030D works with dual antennas that are software configurable for antenna diversity. The AWM4030D accepts analog (line-in), transmits uncompressed HD audio to WiC compatible gear, or receives uncompressed HD audio from a WiC compatible wireless audio transmitter. It works with our U.FL mount internal antennas or SMA cables.

129.95 129.95 USD 129.95

129.95

    This combination does not exist.

    Terms and Conditions
    30-day money-back guarantee

    The AWM4030 is a WiC® compliant wireless audio transmitter/receiver that delivers extraordinary wireless audio quality for multi-room or multi-zone applications. The AWM4020 has dual antennas and accepts either analog (line-in) or digital audio transmits uncompressed HD audio to WiC compatible gear, or receives uncompressed HD audio from a WiC compatible wireless audio transmitter.


    The AWM 4030 is highly programmable. It can be programmed to transmit or receive audio, or as a headset to connect with other WiC compatible devices. The AWM4030 works as an audio transmitter for music or gaming, audio receiver for recording or capturing audio, or as a transceiver for two-way communications. It also has built-in digital filters that can be programmed as low pass, high pass, shelf, and other types of filters.


    The AWM4030 module operates in the 2.4GHz ISM band. It has these highly programmable features:

    Features & Benefits

    Stereo HD Performance

    Uncompressed, 24-bit, HD Audio

    f
    Pairs with up to 4 receivers

    Connect to up to four speakers at the same time

    Extraordinary range and connectivity

    Has a range of up to 100 meters in open space

    Automatic channel selection

    Automatically finds the best radio channel

    Dual Antenna Operation

    Equipped With two MH4 RF Connectors For Antenna Connections

    Controls & Indicators

    Power/Mute/Pairing Button

    Multifunction button controls Power, Mute and Pairing

    Battery/Charge Level/Pairing LED

    LED shows battery Low, charging and Pairing status

    Volume control

    Controls the volume level of the microphone

    Radio

    2.4 GHz Global ISM Band
    18 RF Channels



    Frequency Hopping Protocol



    Automatic RF Interference Avoidance



    MH4 RF connectors for Off-Board Antenna Connection
    Programmable RF Output Level



    Pairing

    Transmitters
    Pairs As A Transmitter With 1-4 Receivers



    Receivers
    Pairs As A Receiver With 1-4 Transmitters



    Programmable Pairing Scenarios



    Inputs

    Two Channels



    Maximum Audio Input Level (P-P) 2.5V P-P



    Outputs

    Two Channels



    ESD And Short Circuit Protection



    Volume Level Offset (DB)



    Audio Formats

    Programmable Sample Rate (KHz)



    Programmable Data Word Size (Bits)



    Supports Compressed/Uncompressed Audio



    Subwoofer Support



    Power Requirements

    Voltage Level - 5V



    Peak Current – 100mA



    Avg. Current – 55mA
